DB204, DB201, SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER

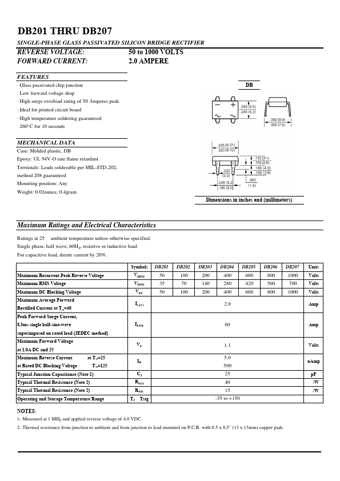

DB201 THRU DB207 SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER REVERSE VOLTAGE: 50 to 1000 VOLTS FORWARD CURRENT: 2.0 AMPERE .

DB201-GW.pdf

DB204 Datasheet Preview — This datasheet PDF includes multiple part numbers: DB204, DB201. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DB204, DB201

Manufacturer:

File Size:

1.31 MB

Description:

SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: DB204, DB201.
Please refer to the document for exact specifications by model.

Features

* Glass passivated chip junction
* Low forward voltage drop
* High surge overload rating of 50 Amperes peak
* Ideal for printed circuit board
* High temperature soldering guaranteed: 260°C for 10 seconds DB MECHANICAL DATA Case: Molded plastic, DB Epoxy: UL 94V-O rate flame ret
