DB206S, DB201S SURFACE MOUNT BRIDGE RECTIFIER

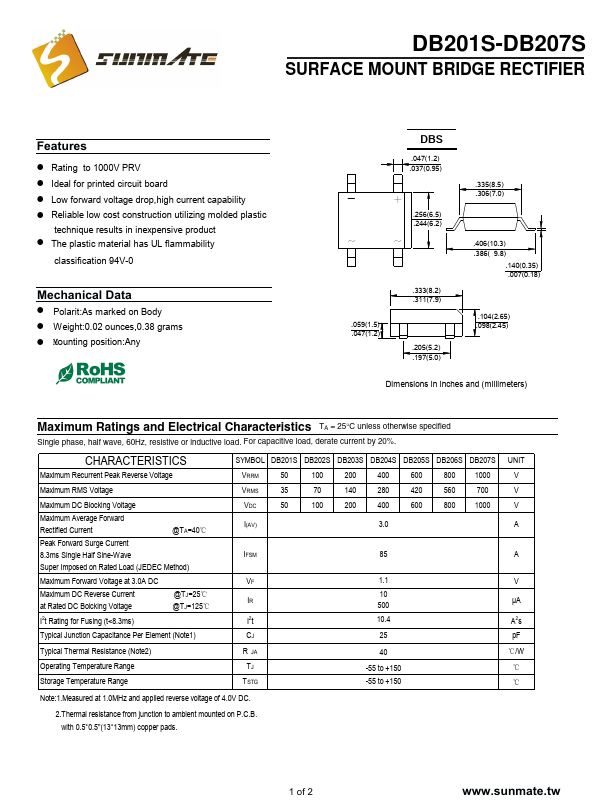

📥 Download Datasheet  Datasheet Preview Page 1

Description

DB201S-DB207S SURFACE MOUNT BRIDGE RECTIFIER .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DB206S, DB201S. Please refer to the document for exact specifications by model.

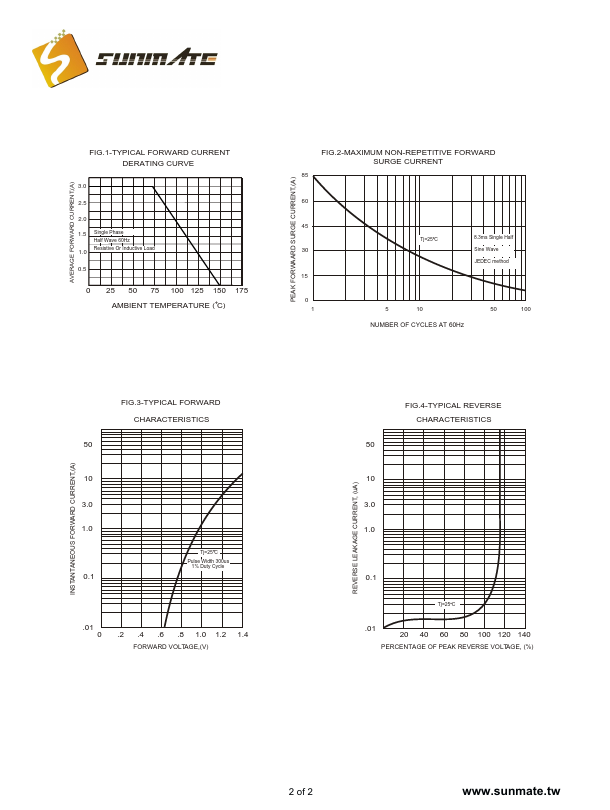

datasheet Preview Page 2

Datasheet Specifications

Part number
DB206S, DB201S
Manufacturer
Sunmate
File Size
666.40 KB
Datasheet
DB201S-Sunmate.pdf
Description
SURFACE MOUNT BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: DB206S, DB201S.
Please refer to the document for exact specifications by model.

Features

* ! Rating to 1000V PRV ! Ideal for printed circuit board ! Low forward voltage drop,high current capability ! Reliable low cost construction utilizing molded plastic technique results in inexpensive product ! The plastic material has UL flammability classification 94V-0 Mechanical Data ! Polarit:As m
