DB201S - SURFACE MOUNT BRIDGE RECTIFIER

DB201S Description

DB201S-DB207S SURFACE MOUNT BRIDGE RECTIFIER .

DB201S Features

* ! Rating to 1000V PRV ! Ideal for printed circuit board ! Low forward voltage drop,high current capability ! Reliable low cost construction utilizing molded plastic technique results in inexpensive product ! The plastic material has UL flammability classification 94V-0 Mechanical Data ! Polarit:As m

📥 Download Datasheet

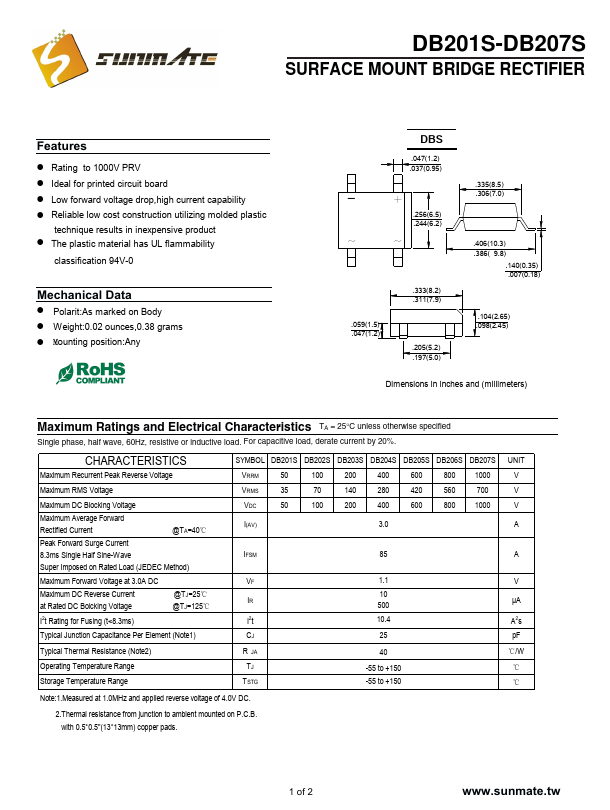

Preview of DB201S PDF

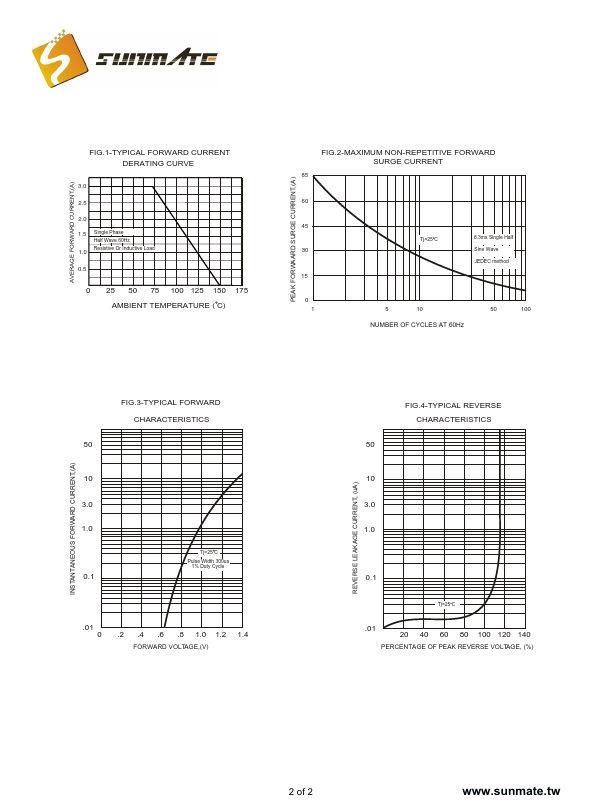

datasheet Preview Page 2

Datasheet Details

Part number
DB201S
Manufacturer
Sunmate
File Size
666.40 KB
Datasheet
DB201S-Sunmate.pdf
Description
SURFACE MOUNT BRIDGE RECTIFIER
