DB206 Features
* Glass passivated chip junction
* Low forward voltage drop
* High surge overload rating of 50 Amperes peak
* Ideal for printed circuit board
* High temperature soldering guaranteed: 260°C for 10 seconds DB MECHANICAL DATA Case: Molded plastic, DB Epoxy: UL 94V-O rate flame ret

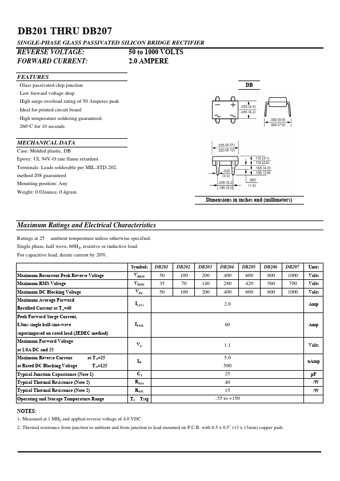

Datasheet Details
DB206, DB201
GW
1.31 MB
Single-phase glass passivated silicon bridge rectifier.
This datasheet PDF includes multiple part numbers: DB206, DB201.
Please refer to the document for exact specifications by model.
