B-13-155-T-SXX3 - 155 Mbps Bi-directional Receptacle Single Fiber Transceiver

Datasheet Summary

Features

Diplexer Single Mode Single Fiber 1x9 SC/FC/ST Receptacle Connector.
Wavelength Tx 1310 nm/Rx 1530 nm.
SONET OC-3 SDH STM-1 Compliant.
Single +5V/+3.3V Power Supply.
PECL/LVPECL Differential Inputs and Output [B-13/15-155-T(3)-Sxx3(4)].
TTL/LVTTL Differential Inputs and Output [B-13/15-155C-T(3)-Sxx3(4)].
Wave Solderable and Aqueous Washable.
LED Multisourced 1x9 Transceiver Interchangeable.
Class 1 Laser Int. Safe.

Datasheet Details

Part number	B-13-155-T-SXX3
Manufacturer	LuminentOIC
File Size	654.63 KB
Description	155 Mbps Bi-directional Receptacle Single Fiber Transceiver
Datasheet	B-13-155-T-SXX3 Datasheet

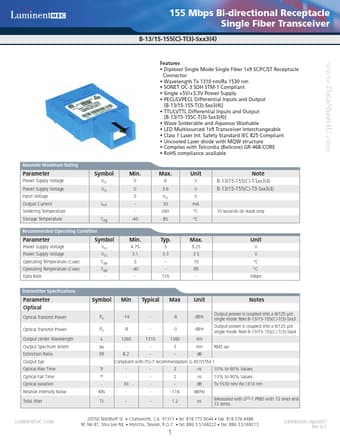

Additional preview pages of the B-13-155-T-SXX3 datasheet.

📁 Similar Datasheet

B-13-15-155-T-SSC4 - 155 Mbps Bi-directional SC Receptacle Single Fiber Transceiver (Source Photonics)

B-13-15-155-T3-SSC4 - 155 Mbps Bi-directional SC Receptacle Single Fiber Transceiver (Source Photonics)

B-13-15-622-TPM-SXX-60 - 622 Mbps Bi-directional Single Fiber Transceiver (Source Photonics)

B-13-15-622-TPM3-SXX-60 - 622 Mbps Bi-directional Single Fiber Transceiver (Source Photonics)

B-13-1250-T-SSC - 1.25 Gbps Single Mode Transceiver (Source Photonics)

B-13-1250C-T3-SSC2 - 1.25 Gbps Single Mode Transceiver (Source Photonics)

B-1020E - LIGHT BAR (ETC)

B-1020G - LIGHT BAR (ETC)

B-1020SR - LIGHT BAR (ETC)

B-1020X - LIGHT BAR (ETC)

Full PDF Text Transcription

Click to expand full text

155 Mbps Bi-directional Receptacle Single Fiber Transceiver B-13/15-155(C)-T(3)-Sxx3(4) Features • Diplexer Single Mode Single Fiber 1x9 SC/FC/ST Receptacle Connector • Wavelength Tx 1310 nm/Rx 1530 nm • SONET OC-3 SDH STM-1 Compliant • Single +5V/+3.3V Power Supply • PECL/LVPECL Differential Inputs and Output [B-13/15-155-T(3)-Sxx3(4)] • TTL/LVTTL Differential Inputs and Output [B-13/15-155C-T(3)-Sxx3(4)] • Wave Solderable and Aqueous Washable • LED Multisourced 1x9 Transceiver Interchangeable • Class 1 Laser Int. Safety Standard IEC 825 Compliant • Uncooled Laser diode with MQW structure • Complies with Telcordia (Bellcore) GR-468-CORE • RoHS compliance available Absolute Maximum Rating www.DataSheet4U.
