B-13-15-622-TPM3-SXX-60 - 622 Mbps Bi-directional Single Fiber Transceiver

This page provides the datasheet information for the B-13-15-622-TPM3-SXX-60, a member of the B-13-15-622-TPM-SXX-60 622 Mbps Bi-directional Single Fiber Transceiver family.

Datasheet Summary

Features

  • Coaxial Single Mode Single Fiber Package with Optional SC/FC/ST Connector.
  • Wavelength Tx 1310 nm/Rx 1550 nm.
  • SONET OC-12 SDH STM-4 (S-4.1) Compliant.
  • Single +3.3V/+5V Power Supply.
  • LVPECL/PECL Differential Inputs and Outputs.
  • Wave Solderable and Aqueous Washable.
  • Class 1 Laser Int. Safety Standard IEC 825 Compliant.
  • Uncooled Laser Diode with MQW Structure.
  • Complies with Telcordia (Bellcore) GR-468-CORE.
  • Te.

📥 Download Datasheet

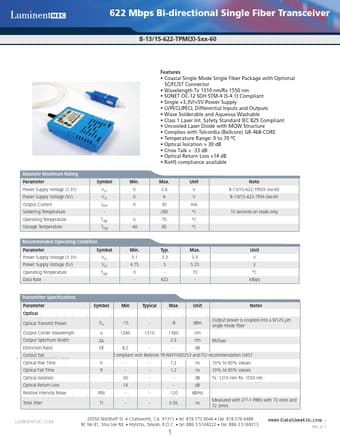

Datasheet preview – B-13-15-622-TPM3-SXX-60

Datasheet Details

Part number B-13-15-622-TPM3-SXX-60
Manufacturer Source Photonics
File Size 627.49 KB
Description 622 Mbps Bi-directional Single Fiber Transceiver
Datasheet download datasheet B-13-15-622-TPM3-SXX-60 Datasheet
Additional preview pages of the B-13-15-622-TPM3-SXX-60 datasheet.

📁 Similar Datasheet

Other Datasheets by Source Photonics

Full PDF Text Transcription

Click to expand full text
622 Mbps Bi-directional Single Fiber Transceiver B-13/15-622-TPM(3)-Sxx-60 Features • Coaxial Single Mode Single Fiber Package with Optional SC/FC/ST Connector • Wavelength Tx 1310 nm/Rx 1550 nm • SONET OC-12 SDH STM-4 (S-4.1) Compliant • Single +3.3V/+5V Power Supply • LVPECL/PECL Differential Inputs and Outputs • Wave Solderable and Aqueous Washable • Class 1 Laser Int. Safety Standard IEC 825 Compliant • Uncooled Laser Diode with MQW Structure • Complies with Telcordia (Bellcore) GR-468-CORE • Temperature Range: 0 to 70 ºC • Optical Isolation > 30 dB • Cross Talk < -33 dB • Optical Return Loss >14 dB • RoHS compliance available Absolute Maximum Rating Parameter Power Supply Voltage (3.
