B-1020X LIGHT BAR

Shape B-1020X, B-1C2CX Part No. B-1020E B-1020G B-1020Y LIGHT BAR Chip Raw Emitted Material Color GaAsP/GaP Hi.effi Red GaP Green GaAsP/GaP Yellow B-1020SR GaAlAs Super Red Wave Length λp(nm) 635 565 585 660 Electro-Optical Characteristics Vf(V)20mA Iv(ucd)10mA Typ. Max. Typ. 2.0 2.8 12.0 2.1 2.8 10.0 2.1 2.8 10.0 Fig. No. D66 1.8 2.4 20.0 B-1C2CE B-1C2CG B-1C2CY B-1C2CSR GaAsP/GaP Hi.effi Red 635 2.0 2.8 12.0 GaP Green 565 2.1 2.8 10.0 GaAsP/GaP Yellow 585.

B-1020X Datasheet (80.70 KB)

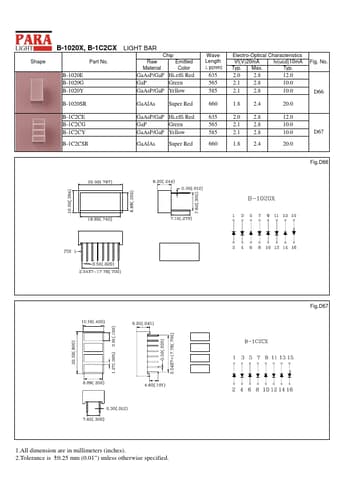

B-1020X Datasheet Preview — Preview of B-1020X PDF

Datasheet Details

Part number:

B-1020X

Manufacturer:

ETC

File Size:

80.70 KB

Description:

Light bar.
