IS32LT3952 Datasheet - Lumissil

CONSTANT-CURRENT 1.5-AMPERE PWM DIMMABLE BUCK REGULATOR LED DRIVER

IS32LT3952 Features

* Wide input voltage supply from 4.5V to 38V - Withstand 40V load dump

* True average output current control

* 1.5A maximum output over operating temperature range

* Cycle-by-cycle current limit

* Integrated high-side MOSFET switch

* Dimming via direct logic input or power su

IS32LT3952 General Description

The IS32LT3952 is a DC-to-DC switching converter that integrates an N-channel MOSFET to operate in a buck configuration. The device can operate from a wide input voltage between 4.5V and 38V and provides a constant current of up to 1.5A for driving a single LED or multiple series connected LEDs. The.

IS32LT3952 Datasheet (741.17 KB)

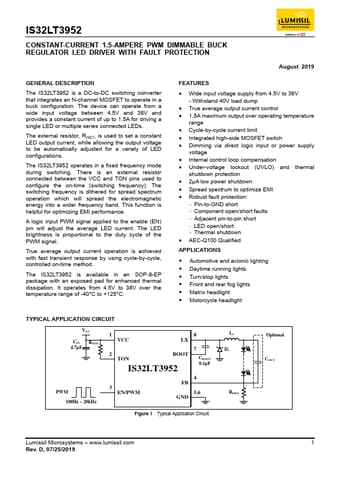

IS32LT3952 Datasheet Preview — Preview of IS32LT3952 PDF

Datasheet Details

Part number:

IS32LT3952

Manufacturer:

Lumissil

File Size:

741.17 KB

Description:

Constant-current 1.5-ampere pwm dimmable buck regulator led driver.
