IS32LT3953 Datasheet - Lumissil

CONSTANT-CURRENT 3-AMPERE PWM DIMMABLE BUCK REGULATOR LED DRIVER

IS32LT3953 Features

* Wide input voltage supply from 4.5V to 38V - Withstand 40V load dump

* True average output current control

* 3A maximum output over operating temperature range

* Cycle-by-cycle current limit

* Integrated high-side MOSFET switch

* Dimming via direct logic input or power supp

IS32LT3953 General Description

The IS32LT3953 is a DC-to-DC switching converter that integrates an N-channel MOSFET to operate in a buck configuration. The device can operate from a wide input voltage between 4.5V and 38V and provides a constant current of up to 3A for driving a single LED or multi ple series connected LEDs. The .

IS32LT3953 Datasheet (784.03 KB)

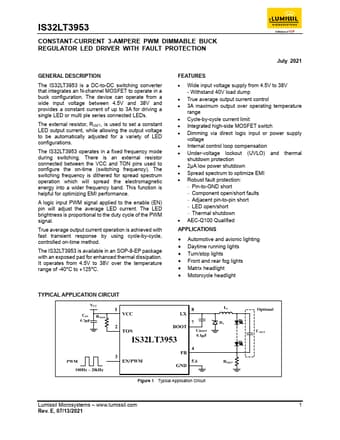

IS32LT3953 Datasheet Preview — Preview of IS32LT3953 PDF

Datasheet Details

Part number:

IS32LT3953

Manufacturer:

Lumissil

File Size:

784.03 KB

Description:

Constant-current 3-ampere pwm dimmable buck regulator led driver.
