IS32LT3957A HIGH VOLTAGE LED LIGHTING CONTROLLER

The IS32LT3957A is a current mode PWM controller designed to drive a low side external NMOS FET for wide input/output voltage range and high LED current applications. An external resistor senses the high side output current of the LED string. A high side sense is the most flexible current sensing sc.

IS32LT3957A Features

* Wide high voltage input range: 5V to 75V

* Supports boost, buck-boost, SEPIC and buck topology

* ±3.5% output current accuracy over -40°C ~ +125°C temperature

* Adjustable operating frequency range of 100kHz~1MHz

* Programmable soft start to avoid inrush current

* Fixed und

IS32LT3957A-Lumissil.pdf

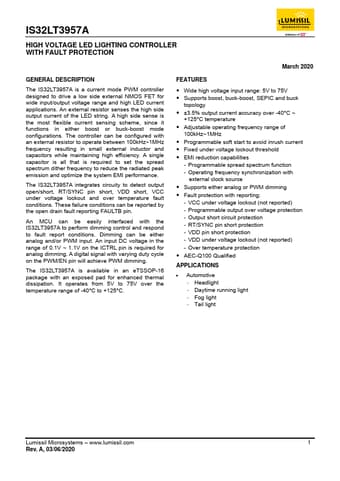

IS32LT3957A Datasheet Preview — Preview of IS32LT3957A PDF

Datasheet Details

Part number:

IS32LT3957A

Manufacturer:

Lumissil

File Size:

616.21 KB

Description:

High voltage led lighting controller.
