IS32LT3958A, HIGH VOLTAGE LED LIGHTING CONTROLLER

IS32LT3958A HIGH VOLTAGE LED LIGHTING CONTROLLER WITH INTERNAL PWM GENERATOR AND FAULT PROTECTION May 2024 GENERAL .
The IS32LT3958A is a current mode PWM controller designed to drive a low side external NMOS FET for wide input/output voltage range and high LED curre.

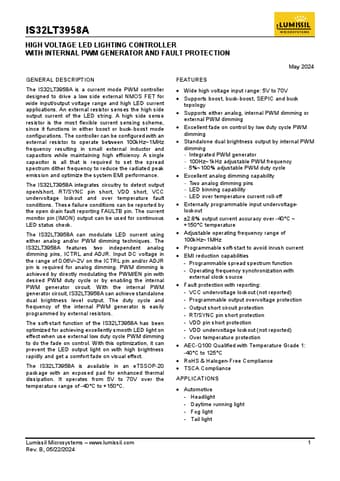

datasheet Preview Page 1 from Datasheet4u.com

IS32LT3958A-Lumissil.pdf

IS32LT3958A Datasheet Preview — Preview of IS32LT3958A PDF

Datasheet Details

Part number:

IS32LT3958A

Manufacturer:

Lumissil

File Size:

679.93 KB

Description:

HIGH VOLTAGE LED LIGHTING CONTROLLER

Features

* two independent analog dimming pins, ICTRL and ADJR. Input DC voltage in the range of 0.06V~2V on the ICTRL pin and/or ADJR pin is required for analog dimming. PWM dimming is achieved by directly modulating the PWM/EN pin with desired PWM duty cycle or by enabling the internal PWM generator circuit.

Applications

* An external resistor senses the high side output current of the LED string. A high side sense resistor is the most flexible current sensing scheme, since it functions in either boost or buck-boost mode configurations. The controller can be configured with an external resistor to operate between 100
