IS32LT3961, CONSTANT-CURRENT 2-AMPERE PWM DIMMABLE BUCK REGULATOR LED DRIVER

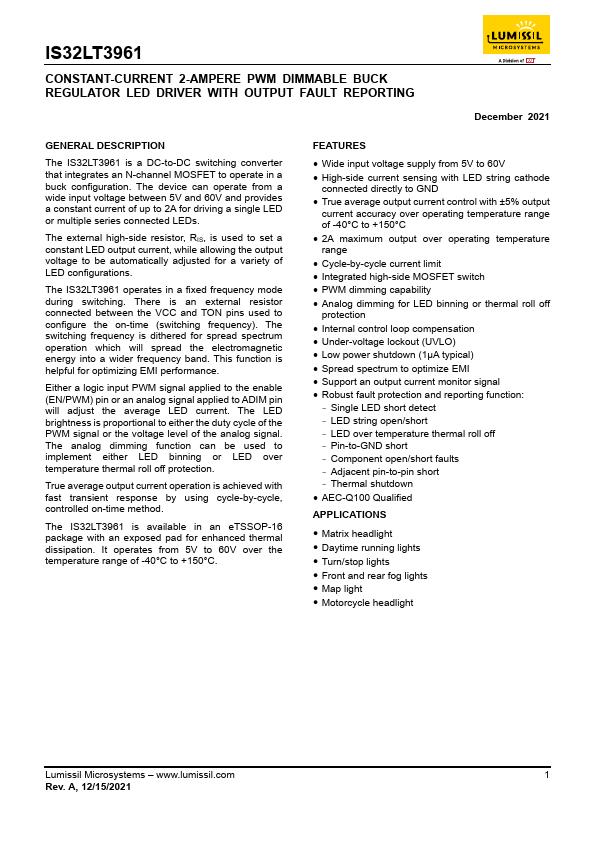

IS32LT3961 CONSTANT-CURRENT 2-AMPERE PWM DIMMABLE BUCK REGULATOR LED DRIVER WITH OUTPUT FAULT REPORTING December 2021 GENERAL .
The IS32LT3961 is a DC-to-DC switching converter that integrates an N-channel MOSFET to operate in a buck configuration.

datasheet Preview Page 1 from Datasheet4u.com

IS32LT3961-Lumissil.pdf

IS32LT3961 Datasheet Preview — Preview of IS32LT3961 PDF

Datasheet Details

Part number:

IS32LT3961

Manufacturer:

Lumissil

File Size:

944.01 KB

Description:

CONSTANT-CURRENT 2-AMPERE PWM DIMMABLE BUCK REGULATOR LED DRIVER

Features

* Wide input voltage supply from 5V to 60V
* High-side current sensing with LED string cathode connected directly to GND
* True average output current control with ±5% output current accuracy over operating temperature range of -40°C to +150°C
* 2A maximum output over operating tempe

Applications

* Matrix headlight
* Daytime running lights
* Turn/stop lights
* Front and rear fog lights
* Map light
* Motorcycle headlight Lumissil Microsystems

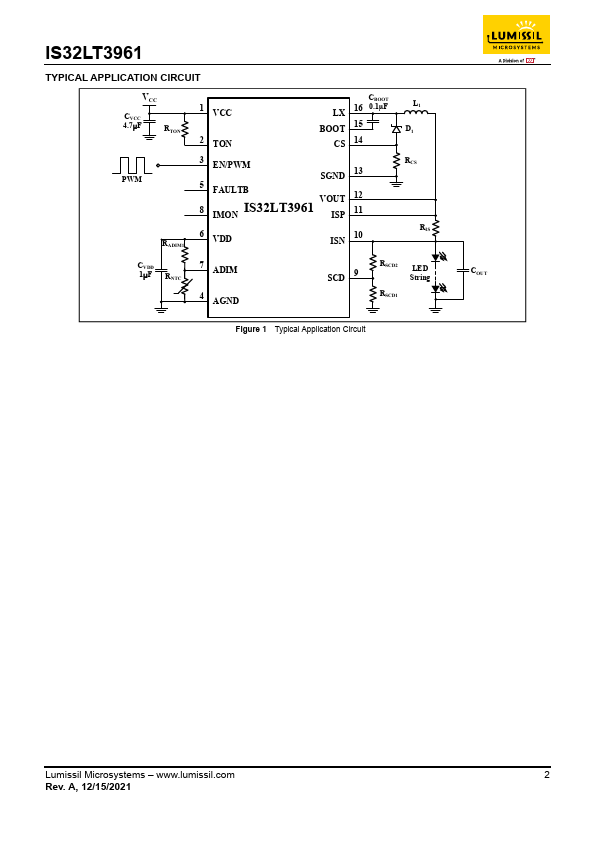

* www. lumissil. com 1 Rev. A, 12/15/2021 IS32LT3961 TYPICAL APPLICATION CIRCUIT VCC CVCC 4.7μF RTON PWM RADIM1
