MT3513A 18V 3.5A 500kHz Synchronous Rectified Step-Down DC/DC Converter

The MT3513/MT3513A is a high efficiency, 3.5A current mode synchronous step-down DC/DC converter with a wide input voltage range from 4.5V to 18V. The device integrates lower high side and low side MOSFETs to achieve high efficiency conversion. The current mode control architecture supports fast tra.

MT3513A Features

* Input Voltage Range from 4.5V to 18V

* +/- 2% 0.6V Feedback Voltage Accuracy

* Adjustable Output Voltage from 0.6V to 12V

* 500kHz Switching Frequency

* Built-in 70mΩ/30mΩ Power Switch

* Continuous Output Current up to 3.5A

* High Efficiency up to 95%

* Internal Sof

MT3513-M3TEK.pdf

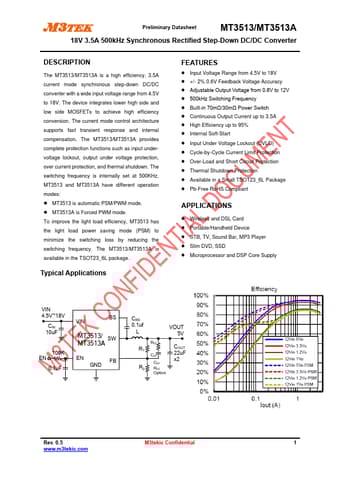

MT3513A Datasheet Preview — This datasheet PDF includes multiple part numbers: MT3513A, MT3513. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MT3513A, MT3513

Manufacturer:

M3TEK

File Size:

182.69 KB

Description:

18v 3.5a 500khz synchronous rectified step-down dc/dc converter.

Note:

This datasheet PDF includes multiple part numbers: MT3513A, MT3513.
Please refer to the document for exact specifications by model.
