1N4583-1, 1N4565-1-MA Datasheet - MA-COM

1N4583-1, 1N4565-1-MA, Zener Reference Diode

1N4565-1 thru 1N4584-1 & 1N4565A-1 thru 1N4584A-1 Temperature Compensated Zener Reference Diode Series .

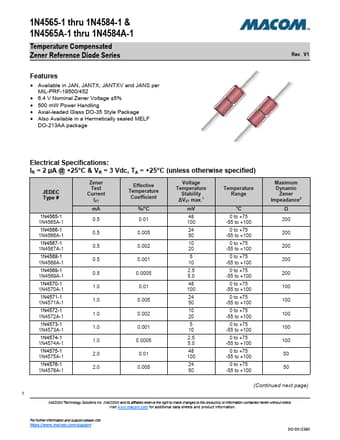

datasheet Preview Page 1 from Datasheet4u.com

1N4565-1-MA-COM.pdf

1N4583-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N4583-1, 1N4565-1-MA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1N4583-1, 1N4565-1-MA

Manufacturer:

MA-COM

File Size:

729.25 KB

Description:

Zener Reference Diode

Note:

This datasheet PDF includes multiple part numbers: 1N4583-1, 1N4565-1-MA.
Please refer to the document for exact specifications by model.

Features

* Available in JAN, JANTX, JANTXV and JANS per MIL-PRF-19500/452
* 6.4 V Nominal Zener Voltage ±5%
* 500 mW Power Handling
* Axial-leaded Glass DO-35 Style Package
* Also Available in a Hermetically sealed MELF DO-213AA package Rev. V1 Electrical Specifications: IR = 2 µA @ +25
