LM102202-H-C-301, LM102202-H-C-301-MA - PIN Diode Limiter

LM102202-H-C-301 Description

LM102202-H-C-301 PIN Diode Limiter .
The LM102202-H-C-301 surface mount silicon PIN diode limiters is manufactured using proven hybrid manufacturing process incorporating PIN diodes and p.

LM102202-H-C-301 Features

* Surface Mount Limiter in 8 mm x 5 mm x 2.5 mm Package
* Incorporates PIN Limiter & Schottky Diodes
* DC Blocks & DC Return
* Higher Average Power Handling than Plastic: 50 W CW Power
* Lower Insertion Loss: 0.8 dB
* Lower Flat Leakage Power: 17 dB
* RoHS
* Compliant

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM102202-H-C-301, LM102202-H-C-301-MA. Please refer to the document for exact specifications by model.

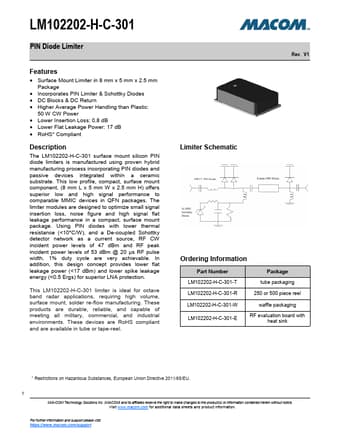

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM102202-H-C-301, LM102202-H-C-301-MA
Manufacturer
MA-COM
File Size
728.57 KB
Datasheet
LM102202-H-C-301-MA-COM.pdf
Description
PIN Diode Limiter
Note
This datasheet PDF includes multiple part numbers: LM102202-H-C-301, LM102202-H-C-301-MA.
Please refer to the document for exact specifications by model.
