MADL-011008 Datasheet, Limiter, MA-COM

MADL-011008 Features

• Limiter
•  Low Insertion Loss and Noise Figure
•  +40 dBm Peak and +30 dBm CW Power
•  +10 dBm P1dB Compression Point
•  +16 dBm Flat Leakage
•  Lead-Fre

PDF File Details

Part number:

MADL-011008

Manufacturer:

MA-COM

File Size:

105.79kb

Download:

📄 Datasheet

Description:

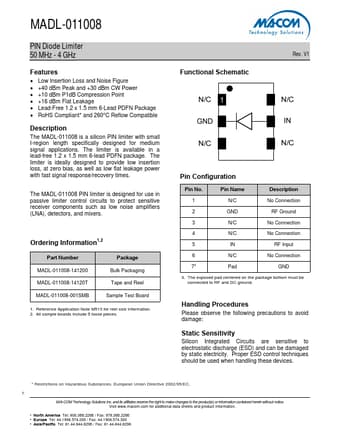

Pin diode limiter. The MADL-011008 is a silicon PIN limiter with small I-region length specifically designed for medium signal applications. The limiter

MADL-011008 Application

• Applications The limiter is available in a lead-free 1.2 x 1.5 mm 6-lead PDFN package. The limiter is ideally designed to provide low insertion los
