MADL-011100 Datasheet, limiter equivalent, MACOM

MADL-011100 Features

  • Limiter
  • Operating Frequency: 2 - 20 GHz
  • Peak Power Operation: 58 dBm @ 13 GHz
  • Insertion Loss: 1 dB @ 12 GHz
  • Flat Leakage Power: 28 dBm @ 58 dBm

PDF File Details

Part number:

MADL-011100

Manufacturer:

MACOM

File Size:

537.02kb

Download:

📄 Datasheet

Description:

High peak power surface mount limiter. The MADL-011100 is a lead-free wide band surface mount limiter that integrates multiple limiter stages and blocking capacitors into a

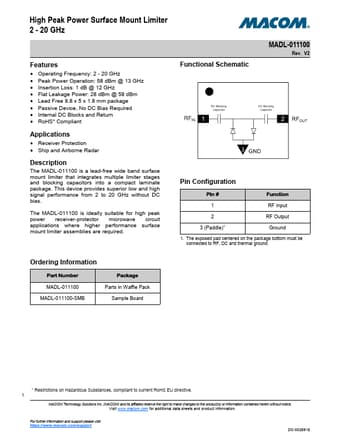

Datasheet Preview: MADL-011100 📥 Download PDF (537.02kb)
Page 2 of MADL-011100 Page 3 of MADL-011100

MADL-011100 Application

  • Applications
  • Receiver Protection
  • Ship and Airborne Radar Description The MADL-011100 is a lead-free wide band surface mount limi
