MADL-011116 Datasheet, limiter equivalent, MACOM

MADL-011116 Features

  • Limiter
  • Peak Power Handling: 10 W
  • CW Power Handling: 3.5 W
  • Low Insertion Loss: 1.4 dB @ 40 GHz
  • Flat Leakage Power: 17 dBm @ 40 GHz
  • 4 mm Air cav

PDF File Details

Part number:

MADL-011116

Manufacturer:

MACOM

File Size:

502.23kb

Download:

📄 Datasheet

Description:

Diode limiter. MADL-011116 is a fully integrated diode limiter. It is a passive device, DC decoupled at both input and output RF ports. The limiter

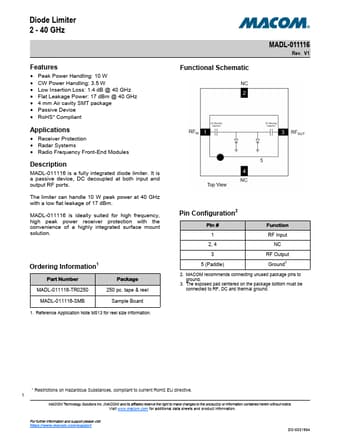

Datasheet Preview: MADL-011116 📥 Download PDF (502.23kb)
Page 2 of MADL-011116 Page 3 of MADL-011116

MADL-011116 Application

  • Applications
  • Receiver Protection
  • Radar Systems
  • Radio Frequency Front-End Modules Description MADL-011116 is a fully in
