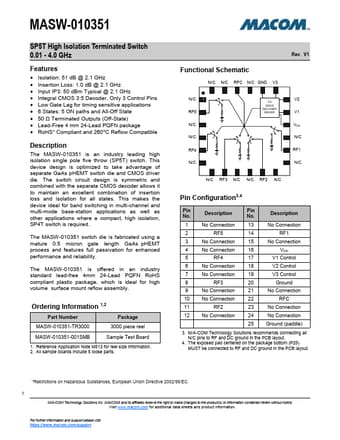

MASW-010351-TR3000 Datasheet, Switch, MA-COM

MASW-010351-TR3000 Features

• Switch
• Isolation: 51 dB @ 2.1 GHz
• Insertion Loss: 1.0 dB @ 2.1 GHz
• Input IP3: 50 dBm Typical @ 2.1 GHz
• Integral CMOS 3:5 Decoder, Only 3 Control Pins

PDF File Details

Part number:

MASW-010351-TR3000

Manufacturer:

MA-COM

File Size:

731.19kb

Download:

📄 Datasheet

Description:

Sp5t high isolation terminated switch. The MASW-010351 is an industry leading high isolation single pole five throw (SP5T) switch. This device design is optimized to take a

MASW-010351-TR3000 Application

• Applications
• 6 States: 5 ON paths and All-Off State
• 50 Ω Terminated Outputs (Off-State)
• Lead-Free 4 mm 24-Lead PQFN pa
