MASW-010612-001SMB Datasheet, Switch, MA-COM

MASW-010612-001SMB Features

  • Switch
  • Low Insertion Loss: 0.6 dB
  • High P1dB: 36 dBm
  • 0.5 micron GaAs pHEMT Process
  • Fast Settling Speed for timing-sensitive applications
  • 1.8 V

PDF File Details

Part number:

MASW-010612-001SMB

Manufacturer:

MA-COM

File Size:

614.55kb

Download:

📄 Datasheet

Description:

Gaas sp3t switch. The MASW-010612 is a GaAs pHEMT MMIC SP3T switch in a lead-free 1.5 mm 8-lead PDFN package. This device is ideal for low control volt

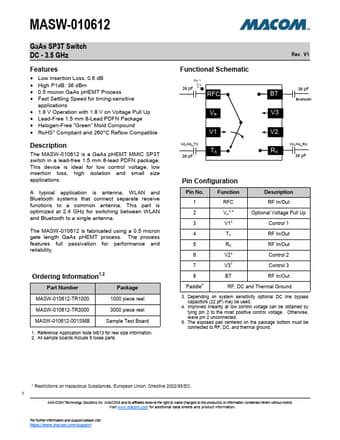

Datasheet Preview: MASW-010612-001SMB 📥 Download PDF (614.55kb)
Page 2 of MASW-010612-001SMB Page 3 of MASW-010612-001SMB

MASW-010612-001SMB Application

  • Applications
  • 1.8 V Operation with 1.8 V on Voltage Pull Up
  • Lead-Free 1.5 mm 8-Lead PDFN Package
  • Halogen-Free ―Green‖ M
