MASW-010647 Datasheet, Switch, MA-COM

MASW-010647 Features

  • Switch
  • Low Insertion Loss High Isolation Low Parasitic Capacitance and Inductance Fully Monolithic Die

PDF File Details

Part number:

MASW-010647

Manufacturer:

MA-COM

File Size:

719.11kb

Download:

📄 Datasheet

Description:

20 w hmic silicon pin diode terminated spdt switch. The MASW-010647 is a monolithic, terminated Silicon PIN diode SPDT switch designed for X-Band high power, high performance applicatio

Datasheet Preview: MASW-010647 📥 Download PDF (719.11kb)

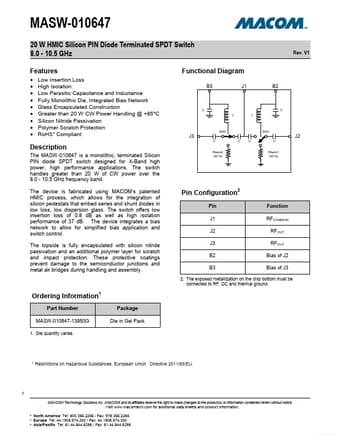

Page 2 of MASW-010647 Page 3 of MASW-010647

MASW-010647 Application

  • Applications The switch handles greater than 20 W of CW power over the 8.0 - 10.5 GHz frequency band. The device is fabricated using MACOM’s patent
