MASW-011036 Datasheet, switch equivalent, MA-COM

MASW-011036 Features

  • Switch
  • Broadband Performance, 26 to 40 GHz
  • Low Loss <1 dB
  • High Isolation >38 dB
  • Up to 13 W CW Power, +85°C
  • Die with G-S-G RF Pads and DC Bias

PDF File Details

Part number:

MASW-011036

Manufacturer:

MA-COM

File Size:

666.43kb

Download:

📄 Datasheet

Description:

Ka-band high power terminated spdt pin switch. The MASW-011036 is a high power SPDT with 50 Ω terminated RF ports. This broadband, high linearity, SPDT switch was developed for Ka<

Datasheet Preview: MASW-011036 📥 Download PDF (666.43kb)

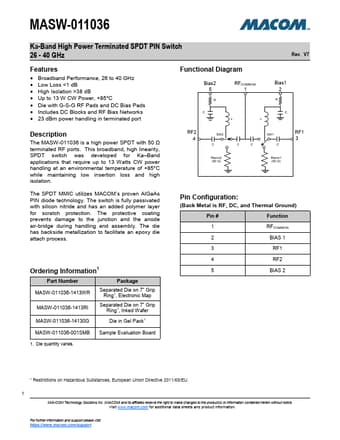

Page 2 of MASW-011036 Page 3 of MASW-011036

MASW-011036 Application

  • Applications that require up to 13 Watts CW power handling at an environmental temperature of +85°C while maintaining low insertion loss and high is
