MRF313, MRF313-MA - The RF Line NPN Silicon High-Frequency Transistor

MRF313 Description

MRF313 The RF Line NPN Silicon High-Frequency Transistor 1.0W, 400MHz, 28V Designed for wideband amplifier, driver or oscillator applications in mili.

MRF313 Applications

* in military, mobile, and aircraft radio.
* Specified 28 V, 400 MHz characteristics
* Output power = 1.0 W Power gain = 15 dB min. Efficiency = 45% typ.
* Emitter ballast and low current density for improved MTBF
* Common emitter for improved stability M/A-COM Product

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MRF313, MRF313-MA. Please refer to the document for exact specifications by model.

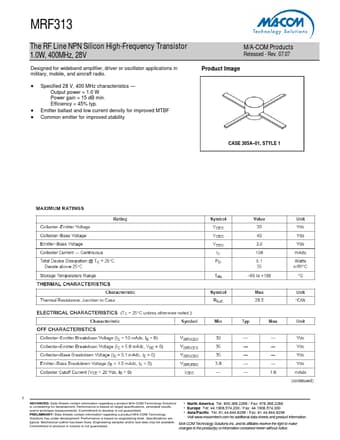

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MRF313, MRF313-MA
Manufacturer
MA-COM
File Size
104.41 KB
Datasheet
MRF313-MA-COM.pdf
Description
The RF Line NPN Silicon High-Frequency Transistor
Note
This datasheet PDF includes multiple part numbers: MRF313, MRF313-MA.
Please refer to the document for exact specifications by model.
