MRF3104 - (MRF3104 / MRF3105 / MRF3106) MICROWAVE LINEAR POWER TRANSISTORS

📥 Download Datasheet

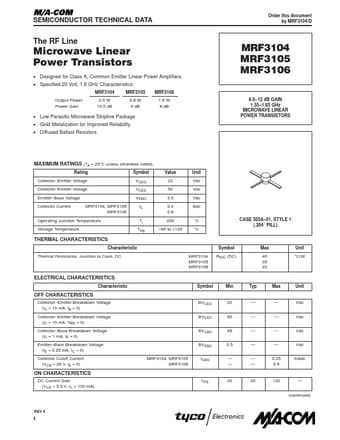

Datasheet preview – MRF3104

Datasheet Details

Part number MRF3104
Manufacturer Tyco Electronics
File Size 93.45 KB
Description (MRF3104 / MRF3105 / MRF3106) MICROWAVE LINEAR POWER TRANSISTORS
Datasheet download datasheet MRF3104 Datasheet
Additional preview pages of the MRF3104 datasheet.

📁 Similar Datasheet

  • MRF313 - The RF Line NPN Silicon High-Frequency Transistor (MA-COM)
  • MRF313 - NPN SILICON RF TRANSISTOR (ASI)
  • MRF313 - HIGH-FREQUENCY TRANSISTOR (Motorola)
  • MRF313A - HIGH FREQUENCY TRANSISTOR (Motorola)
  • MRF314 - RF POWER TRANSISTORS (Motorola)
  • MRF314A - NPN SILICON RF POWER TRANSISTOR (Advanced Semiconductor)
  • MRF315 - NPN Silicon RF Power Transistor (Eleflow Tech)
  • MRF315 - NPN Silicon RF Power Transistors (Motorola)
  • MRF315A - NPN SILICON RF POWER TRANSISTOR (Advanced Semiconductor)
  • MRF316 - BROADBAND RF POWER TRANSISTOR (Motorola)
Other Datasheets by Tyco Electronics
  • MRF3105 - (MRF3104 / MRF3105 / MRF3106) MICROWAVE LINEAR POWER TRANSISTORS
  • MRF3106 - (MRF3104 / MRF3105 / MRF3106) MICROWAVE LINEAR POWER TRANSISTORS
  • MRF313 - HIGH-FREQUENCY TRANSISTOR
  • MRF314 - RF POWER TRANSISTORS
  • MRF316 - The RF Line NPN Silicon RF Power Transistor
  • MRF317 - The RF Line NPN Silicon RF Power Transistor
  • MRF321 - RF POWER TRANSISTOR
  • MRF323 - RF POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text
SEMICONDUCTOR TECHNICAL DATA Order this document by MRF3104/D The RF Line Microwave Linear Power Transistors • Designed for Class A, Common Emitter Linear Power Amplifiers. • Specified 20 Volt, 1.6 GHz Characteristics: MRF3104 Output Power Power Gain 0.5 W 10.5 dB MRF3105 0.8 W 9 dB MRF3106 1.6 W 8 dB MRF3104 MRF3105 MRF3106 8.0–12 dB GAIN 1.55–1.65 GHz MICROWAVE LINEAR POWER TRANSISTORS • Low Parasitic Microwave Stripline Package • Gold Metalization for Improved Reliability • Diffused Ballast Resistors MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Rating Collector–Emitter Voltage Collector–Emitter Voltage Emitter–Base Voltage Collector Current MRF3104, MRF3105 MRF3106 Symbol VCEO VCES VEBO IC Tj Tstg Value 22 50 3.5 0.4 0.
