MRF136, MRF136-MA - The RF MOSFET

MRF136 Description

MRF136 The RF MOSFET Line 15W, to 400MHz, 28V Designed for wideband large signal amplifier and oscillator applications Up to 400 MHz range, in single-.

MRF136 Applications

* Up to 400 MHz range, in single-ended configuration N
* Channel enhancement mode .
* Guaranteed 28 volt, 150 MHz performance Output power = 15 watts Narrowband gain = 16 dB (Typ. ) Efficiency = 60% (Typ. )
* Small
* and large
* signal characterization
* 100% tested for lo

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MRF136, MRF136-MA. Please refer to the document for exact specifications by model.

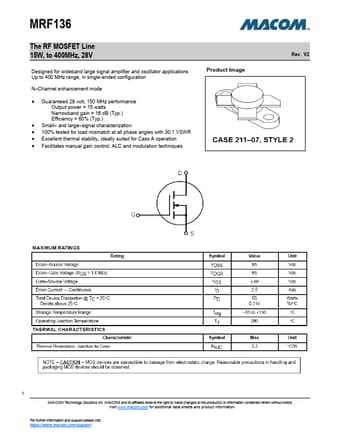

datasheet Preview Page 2 datasheet Preview Page 3
