MRF1000MB Microwave Pulse Power Transistors

SEMICONDUCTOR TECHNICAL DATA Order this document by MRF1000MB/D The RF Line Microwave Pulse Power Transistors Designed for Class A and AB common emitter amplifier applications in the low power stages of IFF, DME, TACAN, radar transmitters, and CW systems. Guaranteed Performance @ 1090 MHz, 18 Vdc Class A Output Power = 0.2 Watt Minimum Gain = 10 dB 100% Tested for Load Mismatch at All Phase Angles with 10:1 VSWR Industry Standard Package

MRF1000MB Datasheet (104.81 KB)

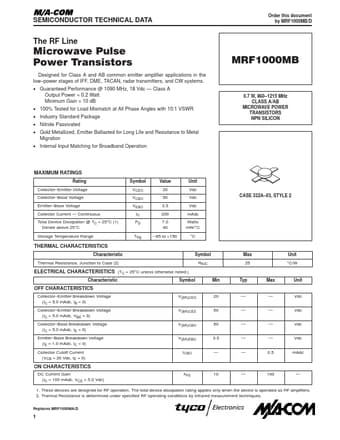

Preview of MRF1000MB PDF

Datasheet Details

Part number:

MRF1000MB

Manufacturer:

Tyco

File Size:

104.81 KB

Description:

Microwave pulse power transistors.
