MRF10070 - MICROWAVE POWER TRANSISTOR

MRF10070 Description

MOTOROLA The RF Line SEMICONDUCTOR TECHNICAL DATA Order this document by MRF10070/D Microwave Pulse Power Transistor Designed for 1025 *115.

MRF10070 Applications

* such as TCAS, TACAN and Mode
* S transmitters.
* Guaranteed Performance @ 1090 MHz Output Power = 70 Watts Peak Gain = 9.0 dB Min
* 100% Tested for Load Mismatch at All Phase Angles with 10:1 VSWR
* Characterized with 10 µs, 10% Duty Cycle Pulses
* Silicon Nitri

📥 Download Datasheet

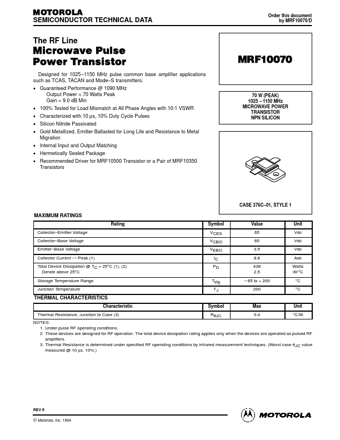

Preview of MRF10070 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MRF10070
Manufacturer
Motorola
File Size
97.78 KB
Datasheet
MRF10070_Motorola.pdf
Description
MICROWAVE POWER TRANSISTOR
