MRF1004MA - NPN SILICON RF POWER TRANSISTOR

MRF1004MA Description

MRF1004MA NPN SILICON RF POWER TRANSISTOR .
The ASI MRF1004MA is Designed for Class B and C, TACAN, IFF, and DME Applications up to 1090 MHz. Cl.

MRF1004MA Features

* Class B and C Operation
* Common Base
* PG = 10 dB at 4.0 W/1090 MHz

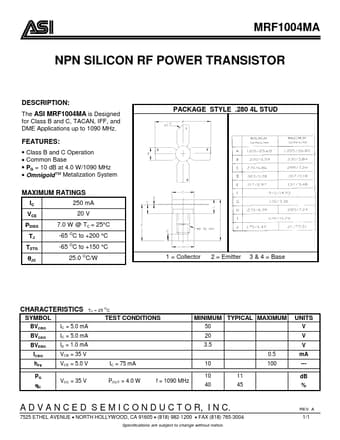

* Omnigold™ Metalization System MAXIMUM RATINGS IC VCE PDISS TJ TSTG θJC O O 250 mA 20 V 7.0 W @ TC = 25°C -65 C to +200 °C -65 C to +150 °C 25.0 C/W O 1 = Collector 2 = Emitter 3 & 4 = Base
