MRF10005 - The RF Line Microwave Power Transistor

MRF10005 Description

SEMICONDUCTOR TECHNICAL DATA Order this document by MRF10005/D The RF Line Microwave Power Transistor ...designed for CW and long pulsed common .

MRF10005 Applications

* such as JTIDS and Mode S, in the 0.96 to 1.215 GHz frequency range at high overall duty cycles.
* Guaranteed Performance @ 1.215 GHz, 28 Vdc Output Power = 5.0 Watts CW Minimum Gain = 8.5 dB, 10.3 dB (Typ)
* RF Performance Curves given for 28 Vdc and 36 Vdc Operation
* 100%

📥 Download Datasheet

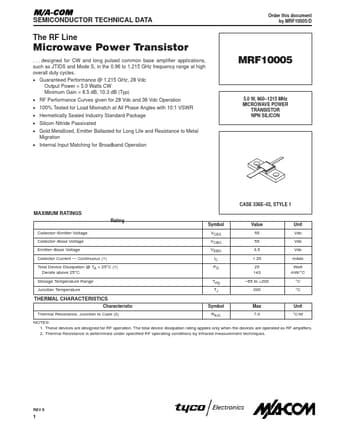

Preview of MRF10005 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MRF10005
Manufacturer
Tyco
File Size
160.25 KB
Datasheet
MRF10005_Tyco.pdf
Description
The RF Line Microwave Power Transistor
