MRF10031 Datasheet - Motorola

MRF10031 MICROWAVE POWER TRANSISTOR

MOTOROLA The RF Line SEMICONDUCTOR TECHNICAL DATA Order this document by MRF10031/D Microwave Long Pulse Power Transistor Designed for 960 1215 MHz long or short pulse common base amplifier applications such as JTIDS and Mode S transmitters. Guaranteed Performance @ 960 MHz, 36 Vdc Output Power = 30 Watts Peak Minimum Gain = 9.0 dB Min (9.5 dB Typ) 100% Tested for Load Mismatch at All Phase Angles with 10:1 VSWR Hermetically Sealed Industry Stan.

MRF10031_Motorola.pdf

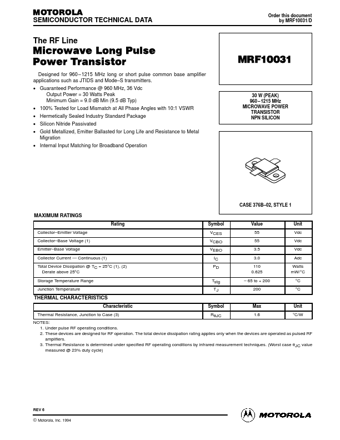

Preview of MRF10031 PDF
MRF10031 Datasheet Preview Page 2 MRF10031 Datasheet Preview Page 3

Datasheet Details

Part number:

MRF10031

Manufacturer:

Motorola

File Size:

101.21 KB

Description:

Microwave power transistor.
