MRF240A - NPN SILICON RF POWER TRANSISTOR

MRF240A Description

www.DataSheet4U.com MRF240A NPN SILICON RF POWER TRANSISTOR .
The ASI MRF240A is Designed for Class C Amplifier Applications in VHF Mobile Radios. P.

MRF240A Features

* PG = 9.0 dB Min. at 40 W /160 MHz
* ηC = 55% Min. at 40 W /160 MHz
* Omnigold™ Metalization System E C Ø.125 NOM. FULL R J .125 B C D F E E MAXIMUM RATINGS IC VCBO VCEO VEBO PDISS TJ TSTG θJC 8.0 A 36 V DIM I GH MINIMUM inches / mm MAXIMUM inches / mm 18 V 4.0 V

📥 Download Datasheet

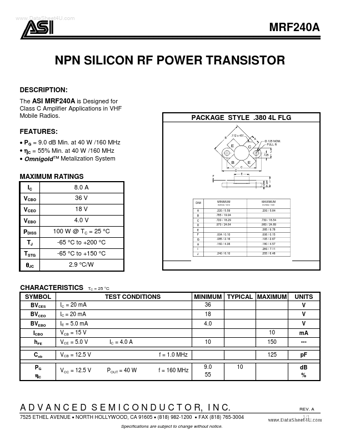

Preview of MRF240A PDF

Datasheet Details

Part number
MRF240A
Manufacturer
ASI
File Size
46.55 KB
Datasheet
MRF240A_ASI.pdf
Description
NPN SILICON RF POWER TRANSISTOR
