MRF264 - SILICON NPN RF POWER TRANSISTOR

MRF264 Description

www.DataSheet4U.com MRF264 SILICON NPN RF POWER TRANSISTOR .
The ASI MRF264 is Designed for Class C VHF Mobile Radio Power Amplifier Applications Operating at 12.

MRF264 Features

* POUT = 30 W Min. @ 175 MHz
* Gold Metalization
* Economical TO-220 CE Package MAXIMUM RATINGS IC VCE PDISS TJ TSTG θJC O O 6.0 A 16 V 80 W @ TC = 25 C -65 C to +200 C -65 C to +150 C 1.6 C/W O O O O 1 = BASE 2 = EMITTER 3 = COLLECTOR MOUNTING TAB = EMITTER CHARACTERIST

📥 Download Datasheet

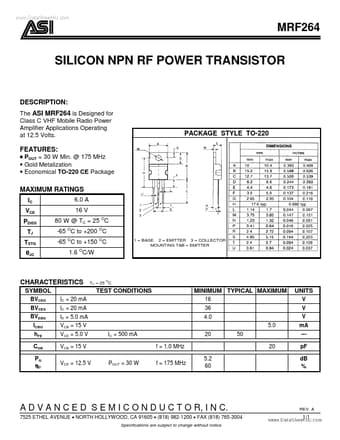

Preview of MRF264 PDF

Datasheet Details

Part number
MRF264
Manufacturer
ASI
File Size
61.63 KB
Datasheet
MRF264_ASI.pdf
Description
SILICON NPN RF POWER TRANSISTOR
