MRF13750H - RF Power LDMOS Transistors

MRF13750H Description

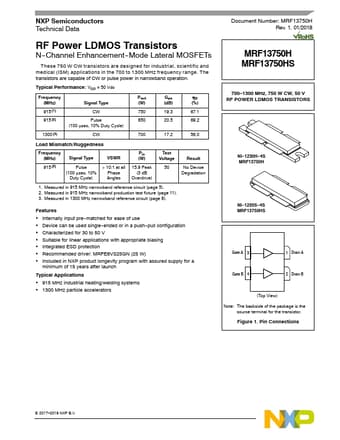

NXP Semiconductors Technical Data RF Power LDMOS Transistors N *Channel Enhancement *Mode Lateral MOSFETs These 750 W CW transistors a.

MRF13750H Features

* Internally input pre
* matched for ease of us

MRF13750H Applications

* in the 700 to 1300 MHz frequency range. The transistors are capable of CW or pulse power in narrowband operation. Typical Performance: VDD = 50 Vdc Frequency (MHz) Signal Type 915 (1) CW 915 (2) Pulse (100 sec, 10% Duty Cycle) 1300 (3) CW Pout (W) 750 850 700 Gps (dB) 19.3 20.5 17.2 D
