MSS20-046-C15

Zero Bias Schottky Diodes

MSS20-046-C15 Features

* Very Low 1/f Noise

* Detector Applications up to 40 GHz

* Chip Beam Lead and Packaged Devices Description The MSS20-xxx-x Series of Schottky diodes is fabricated on P-Type epitaxial substrates for superior 1/f noise performance in microwave 0-bias detector applications up to 40 GHz. R

MSS20-046-C15 General Description

The MSS20-xxx-x Series of Schottky diodes is fabricated on P-Type epitaxial substrates for superior 1/f noise performance in microwave 0-bias detector applications up to 40 GHz. Rev. V4 Chip & Beam Lead Electrical Specifications: TA = 25°C Model Chip MSS20-046MSS20-047MSS20-050MSS20-051MSS20-054M.

MSS20-046-C15 Datasheet (791.57 KB)

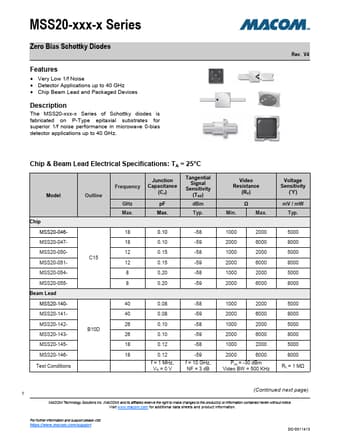

Preview of MSS20-046-C15 PDF

Datasheet Details

Part number:

MSS20-046-C15

Manufacturer:

MA-COM

File Size:

791.57 KB

Description:

Zero bias schottky diodes.
