PAW1027-1, PAW1027-1-MA RF Linear Hybrid Amplifier

PAW1027-1 Description

PAW1027-1 RF Linear Hybrid Amplifier 35 to 500 MHz .
The PAW1027-1 linear power amplifier is a discrete hybrid design, which uses thick film solder manufacturing processes for accurate performance and hi.

PAW1027-1 Features

* ULTRA HIGH LINEARITY
* HIGH GAIN: 38.0 dB (TYP. )
* LOW NOISE FIGURE 4.5 dB (TYP. )

PAW1027-1 Applications

* Product Image Rev. V3 Preliminary Ordering Information Part Number PAW1027-1 Package SOT115J Absolute Maximum Ratings Parameter Absolute Maximum Electrical Specifications: Z0 = 50, VCC = +24 VDC Storage Temperature Operation Base Temperature -40ºC to +85ºC +70ºC Parameter Typical Guar

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PAW1027-1, PAW1027-1-MA. Please refer to the document for exact specifications by model.

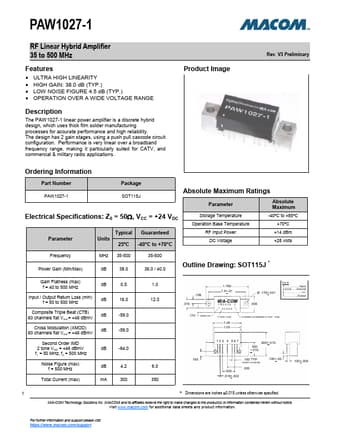

datasheet Preview Page 2

Datasheet Details

Part number
PAW1027-1, PAW1027-1-MA
Manufacturer
MA-COM
File Size
437.58 KB
Datasheet
PAW1027-1-MA-COM.pdf
Description
RF Linear Hybrid Amplifier
Note
This datasheet PDF includes multiple part numbers: PAW1027-1, PAW1027-1-MA.
Please refer to the document for exact specifications by model.
