PAW1027, PAW1027-MA RF Linear Hybrid Amplifier

PAW1027 Description

PAW1027 RF Linear Hybrid Amplifier 35 - 350 MHz .
The PAW1027 linear power amplifier is a discrete hybrid design, which uses thick film solder manufacturing processes for accurate performance and high.

PAW1027 Features

* Ultra High Linearity
* High Gain: 38.5 dB
* Low Noise Figure: 3.7 dB

PAW1027 Applications

* Product Image Rev. V4 Electrical Specifications: Freq. = 35 - 350 MHz, Z0 = 75 Ω, VCC = +24 VDC Nominal Parameter Units Typical 25ºC Guaranteed 0oC to +70oC Power Gain (min. /max. ) dB 38.5 37.0 / 40.0 Gain Flatness (max. ) f = 40 - 350 MHz dB 0.4 0.6 Input / Output Return Loss (min. )

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PAW1027, PAW1027-MA. Please refer to the document for exact specifications by model.

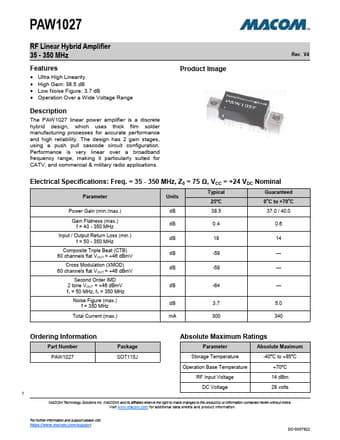

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PAW1027, PAW1027-MA
Manufacturer
MA-COM
File Size
597.52 KB
Datasheet
PAW1027-MA-COM.pdf
Description
RF Linear Hybrid Amplifier
Note
This datasheet PDF includes multiple part numbers: PAW1027, PAW1027-MA.
Please refer to the document for exact specifications by model.
