PAW-1027 - CATV Ultra-linear Amplifier

Product Overview

Tyco Electronics

Datasheet Details

Part number	PAW-1027
Manufacturer	Tyco Electronics
File Size	35.65 KB
Description	CATV Ultra-linear Amplifier
Datasheet	PAW-1027 Datasheet
Additional preview pages of the PAW-1027 datasheet.

Product details

Description

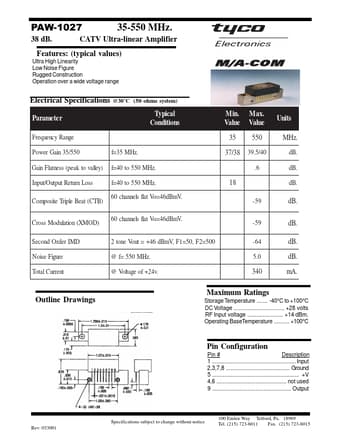

1 Input 2,3,7,8 Ground 5 +V 4,6 not used 9 Output Specifications subject to change without notice Rev: 033001 100 Emlen Way Telford, Pa.18969 Tel.(215) 723-6011 Fax.(215) 723-6015

Features

(typical values) Ultra High Linearity Low Noise Figure Rugged Construction Operation over a wide voltage range Electrical Specifications Parame te r Frequency Range Power Gain 35/550 Gain Flatness (peak to valley) Input/Output Return Loss Composite Triple Beat (CTB) Cross Modulation (XMOD) Second Order IMD Noise Figure Total Current @30°C (50 ohms system) Typical Conditions M in. Value 35 M ax. Value 550 Units MHz. dB. dB. dB. f=35 MHz. f=40 to 550 MHz. f=40 to 550 MHz. 60 channels flat.
