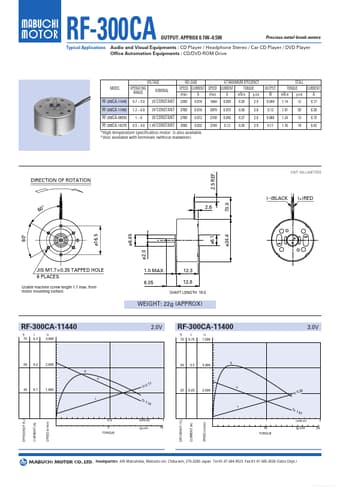

RF-300CA
Typical Applications
MODEL OPERATING RANGE
OUTPUT: APPROX 0.1W~0.5W
Precious metal-brush motors
Audio and Visual Equipments : CD Player / Headphone Stereo / Car CD Player / DVD Player Office Automation Equipments : CD/DVD-ROM Drive
VOLTAGE NOMINAL
NO LOAD AT MAXIMUM EFFICIENCY SPEED CURRENT SPEED CURRENT TORQUE r/min A r/min A mN·m g·cm
OUTPUT W
STALL TORQUE CURRENT mN·m g·cm A
RF-300CA-11440 RF-300CA-11400 RF-300CA-09550 RF-300CA-14270
0.7 ~ 5.0 1.2 ~ 6.0 1~6 0.5 ~ 4.0
2V CONSTANT 3V CONSTANT 3V CONSTANT 1.9V CONSTANT
2200 3700 2700 3500
0.018 0.018 0.012 0.032
1660 2970 2100 2740
0.055 0.073 0.042 0.12
0.28 0.38 0.27 0.38
2.9 3.8 2.8 3.9
0.049 0.12 0.060 0.11
1.14 1.91 1.24 1.76
12 20 13 18
0.17 0.30 0.15 0.
