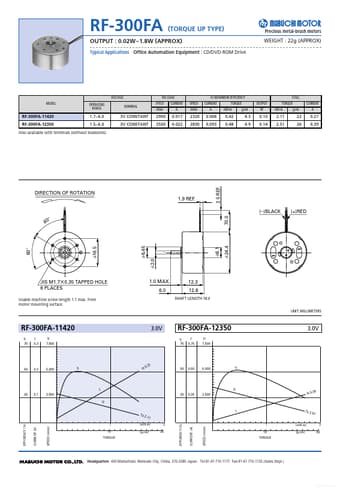

RF-300FA
(TORQUE UP TYPE)
Precious metal-brush motors
OUTPUT : 0.02W~1.8W (APPROX)
Typical Applications Office Automation Equipment : CD/DVD-ROM Drive
WEIGHT : 22g (APPROX)
VOLTAGE MODEL OPERATING RANGE NOMINAL
NO LOAD SPEED r/min CURRENT A SPEED r/min
AT MAXIMUM EFFICIENCY CURRENT A TORQUE mN·m g·cm OUTPUT W mN·m
STALL TORQUE g·cm CURRENT A
RF-300FA-11420 RF-300FA-12350
1.7~6.0 1.5~6.0
3V CONSTANT 3V CONSTANT
2900 3500
0.017 0.022
2320 2830
0.068 0.093
0.42 0.48
4.3 4.9
0.10 0.14
2.11 2.51
22 26
0.27 0.39
Also available with terminals (without leadwires).
DIRECTION OF ROTATION 1.9 REF.
2.5 REF.
(–)BLACK
° 60
(+)RED
16.5
6.45
JIS M1.7 ✕ 0.35 TAPPED HOLE 6 PLACES
Usable machine screw length 1.1 max. from motor mounting surface.
2.0
1.0 MAX. 6.0
12.3 12.
