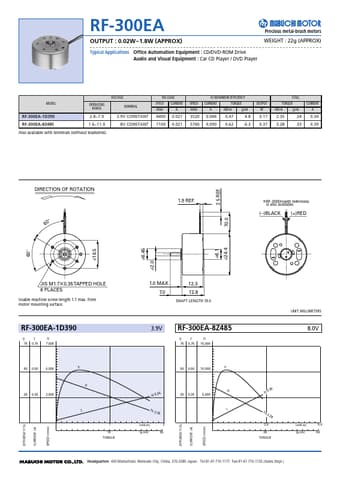

RF-300EA
OUTPUT : 0.02W~1.8W (APPROX)
Precious metal-brush motors WEIGHT : 22g (APPROX)
Typical Applications Office Automation Equipment : CD/DVD-ROM Drive Audio and Visual Equipment : Car CD Player / DVD Player
MODEL
OPERATING RANGE
VOLTAGE NOMINAL
RF-300EA-1D390 RF-300EA-8Z485
2.8~7.0 1.6~11.0
3.9V CONSTANT 8V CONSTANT
Also available with terminals (without leadwires).
NO LOAD SPEED CURRENT r/min A
4400 0.021 7100 0.021
SPEED r/min
AT MAXIMUM EFFICIENCY
CURRENT
TORQUE
A
mN·m
g·cm
3520 0.084 0.47
4.8
5760 0.090 0.62
6.3
OUTPUT W
0.17 0.37
STALL
TORQUE
mN·m
g·cm
CURRENT A
2.35 24 0.34
3.28 33 0.39
DIRECTION OF ROTATION 60°
2.5 REF.
1.9 REF.
*RF-300EH(with terminals) is also available.
(–)BLACK (+)RED
70.0
6.1 24.4
16.5 6.45 2.0
60°
JIS M1.7✕0.
