2026-6001-10 Datasheet - MACOM

2026-6001-10, Directional Couplers

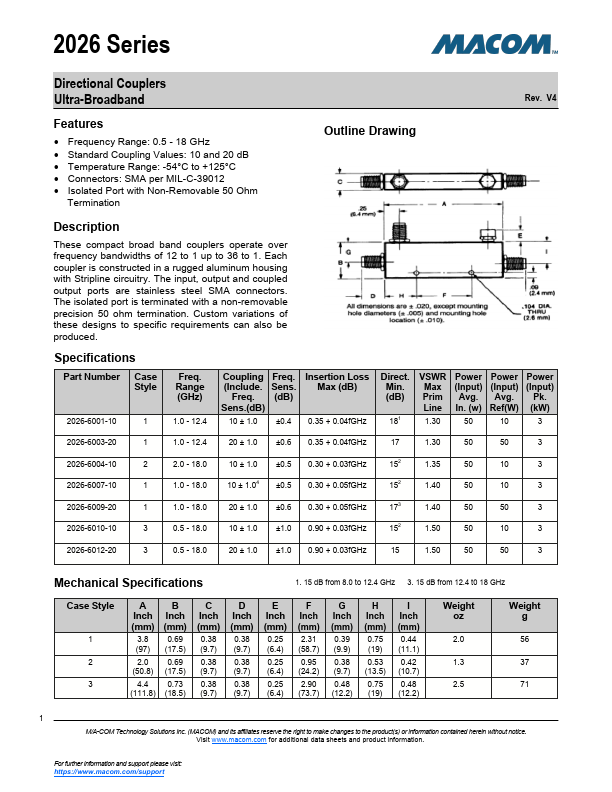

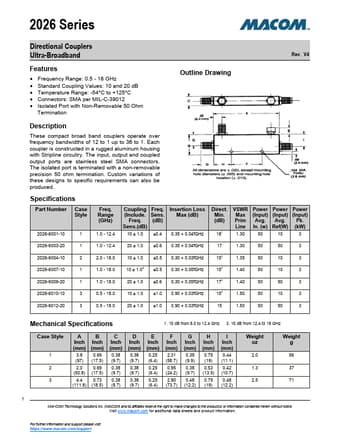

2026 Series Directional Couplers Ultra-Broadband Rev.V4 .
These compact broad band couplers operate over frequency bandwidths of 12 to 1 up to 36 to 1.

datasheet Preview Page 1 from Datasheet4u.com

2026-6001-10-MACOM.pdf

2026-6001-10 Datasheet Preview — Preview of 2026-6001-10 PDF

Datasheet Details

Part number:

2026-6001-10

Manufacturer:

MACOM

File Size:

408.34 KB

Description:

Directional Couplers

Features

* Frequency Range: 0.5 - 18 GHz
* Standard Coupling Values: 10 and 20 dB
* Temperature Range: -54°C to +125°C
* Connectors: SMA per MIL-C-39012

Applications

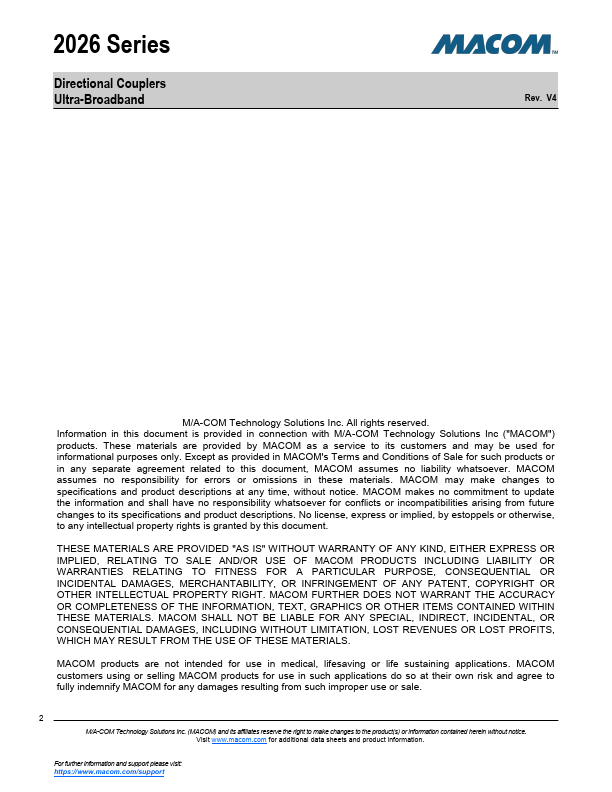

* MACOM customers using or selling MACOM products for use in such applications do so at their own risk and agree to fully indemnify MACOM for any damages resulting from such improper use or sale. 2 M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the p
