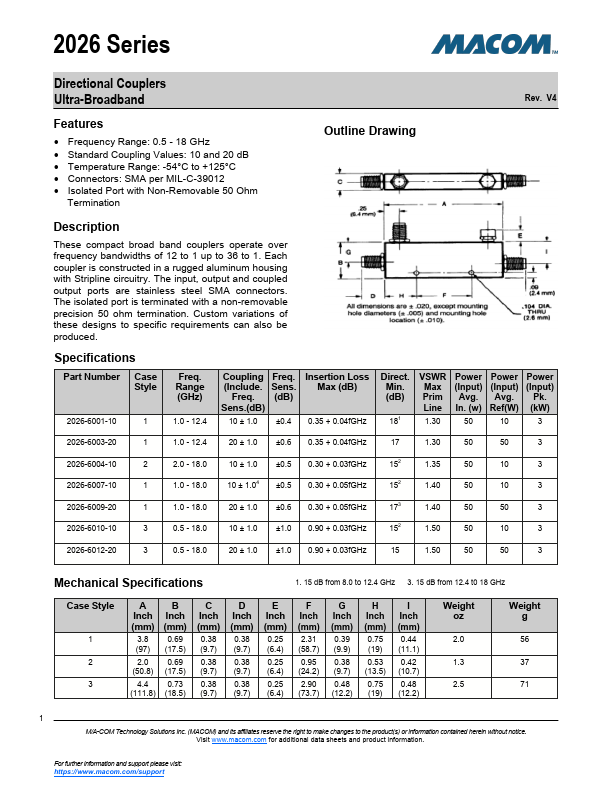

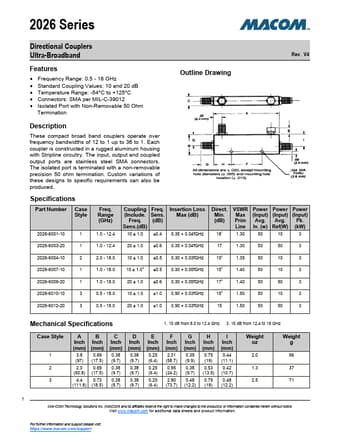

2026-6004-10, 2026-6001-10 Datasheet - MACOM

2026-6004-10 Directional Couplers

These compact broad band couplers operate over frequency bandwidths of 12 to 1 up to 36 to 1. Each coupler is constructed in a rugged aluminum housing with Stripline circuitry. The input, output and coupled output ports are stainless steel SMA connectors. The isolated port is terminated with a non-r.

2026-6001-10-MACOM.pdf

2026-6004-10 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2026-6004-10, 2026-6001-10. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2026-6004-10, 2026-6001-10

Manufacturer:

MACOM

File Size:

408.34 KB

Description:

Directional couplers.

Note:

This datasheet PDF includes multiple part numbers: 2026-6004-10, 2026-6001-10.
Please refer to the document for exact specifications by model.
