MAAM-011101 - Ultra small Broadband General Purpose Amplifier

MACOM

📥 Download Datasheet

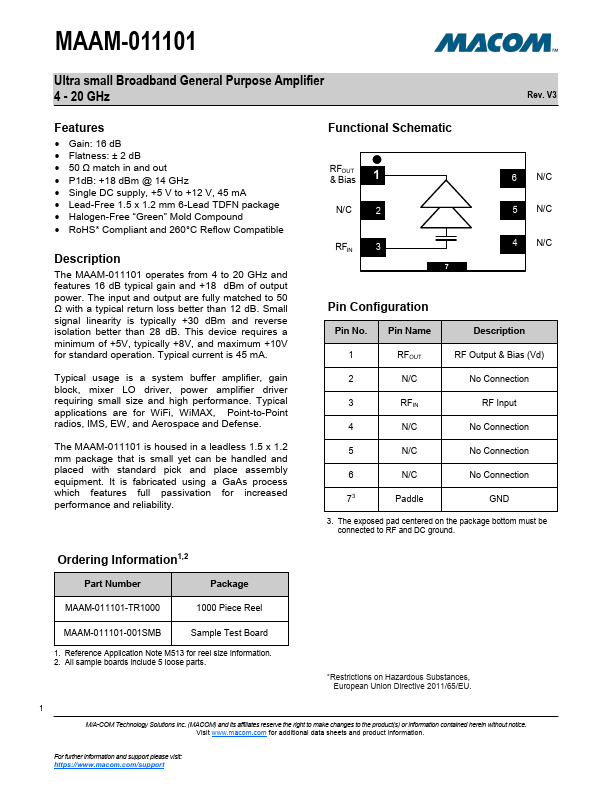

MAAM-011101 Datasheet Preview — Preview of MAAM-011101 PDF

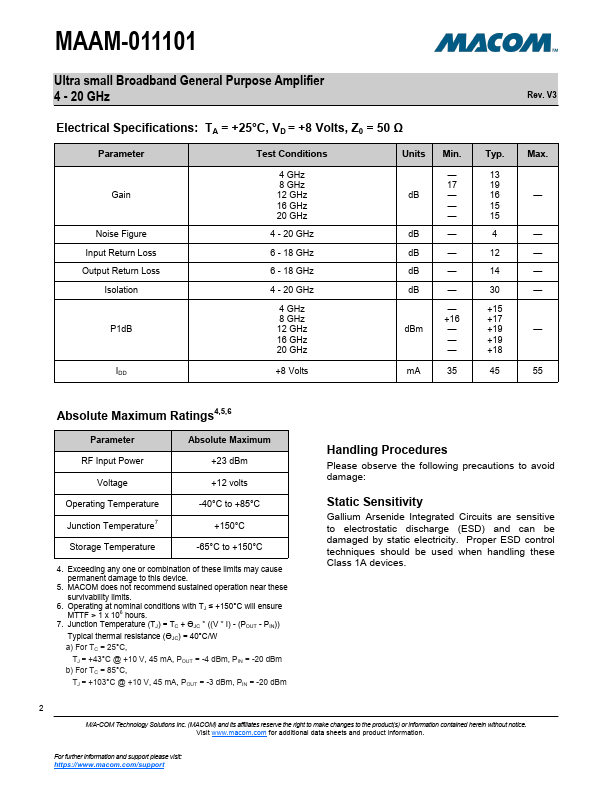

datasheet Preview Page 2

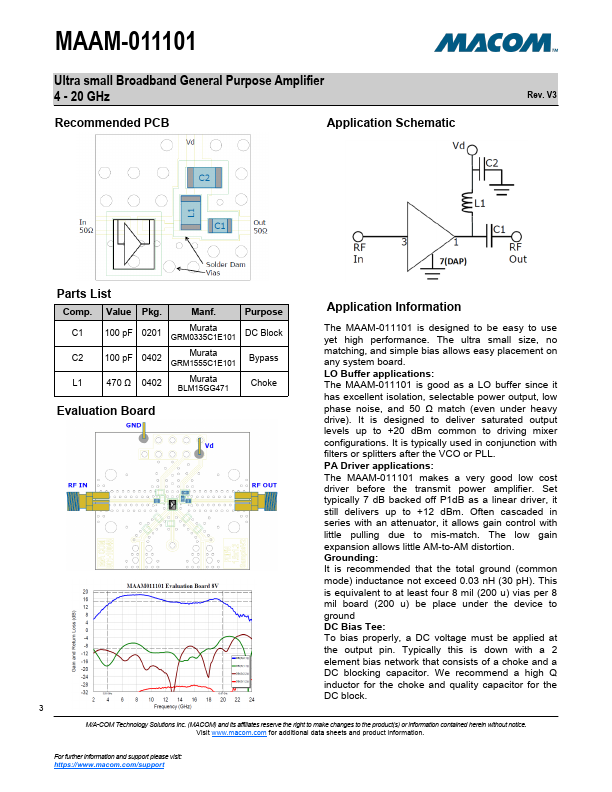

datasheet Preview Page 3

Datasheet Details

Part number	MAAM-011101
Manufacturer	MACOM
File Size	1.04 MB
Description	Ultra small Broadband General Purpose Amplifier
Datasheet	MAAM-011101-MACOM.pdf

MAAM-011101 Product details

Description

The MAAM-011101 operates from 4 to 20 GHz and

Features

Gain: 16 dB.
Flatness: ± 2 dB.
50 Ω match in and out.
P1dB: +18 dBm @ 14 GHz.
Single DC supply, +5 V to +12 V, 45 mA.
Lead-Free 1.5 x 1.2 mm 6-Lead TDFN package.
Halogen-Free “Green” Mold Compound.
RoHS.
Compliant and 260°C Reflow Compatible.
