MAAM-011337 Datasheet, Amplifier, MACOM

MAAM-011337 Features

• Amplifier
• Gain: 23 dB
• Output P1dB: 20 dBm
• Output Power: 23 dBm with Input Power: 3 dBm
• Drain Supply: 5 V
• Lead-Free 2 mm, 8 lead PDFN Package

PDF File Details

Part number:

MAAM-011337

Manufacturer:

MACOM

File Size:

1.20MB

Download:

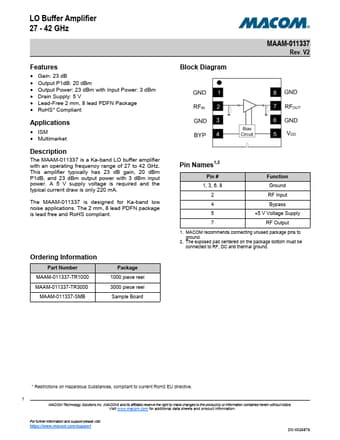

📄 Datasheet

Description:

Lo buffer amplifier. The MAAM-011337 is a Ka-band LO buffer amplifier with an operating frequency range of 27 to 42 GHz. This amplifier typically has 23 d

MAAM-011337 Application

• Applications
• ISM
• Multimarket Description The MAAM-011337 is a Ka-band LO buffer amplifier with an operating frequency range of 2
