MAAM-011109 Datasheet, Amplifier, MA-COM

MAAM-011109 Features

  • Amplifier
  • 13 dB Gain
  • 50 Ω Input / Output Match
  • +18 dBm Output Power
  • +5 V DC, 190 mA
  • Lead-Free 5 mm 9-lead LGA Package
  • RoHS
  • Com

PDF File Details

Part number:

MAAM-011109

Manufacturer:

MA-COM

File Size:

929.73kb

Download:

📄 Datasheet

Description:

Wideband amplifier. The MAAM-011109 is an easy-to-use, wideband amplifier that operates from 10 MHz - 40 GHz. The device features 13 dB gain and +18 dBm

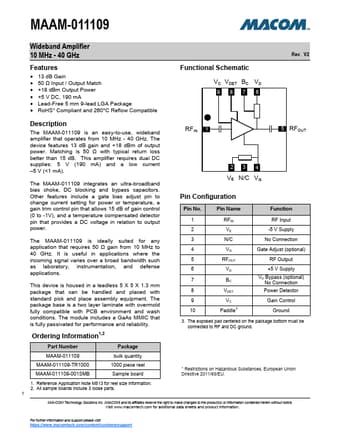

Datasheet Preview: MAAM-011109 📥 Download PDF (929.73kb)
Page 2 of MAAM-011109 Page 3 of MAAM-011109

MAAM-011109 Application

  • Applications where the incoming signal varies over a broad bandwidth such as laboratory, instrumentation, and defense applications. This device is h
