MAAM-011338 Datasheet, Amplifier, MA-COM

MAAM-011338 Features

  • Amplifier
  • 23 dB Gain
  • 11 dBm Output P1dB
  • 14 dBm Output Power with -6 dBm Input Power
  • 3.3 V Drain Supply
  • 2 mm, 8 lead PDFN Package
  • RoHS

PDF File Details

Part number:

MAAM-011338

Manufacturer:

MA-COM

File Size:

535.02kb

Download:

📄 Datasheet

Description:

Lo buffer amplifier. The MAAM-011338 is a Ka-band LO buffer amplifier with an operating frequency range of 27 to 42 GHz. This amplifier typically has 23 d

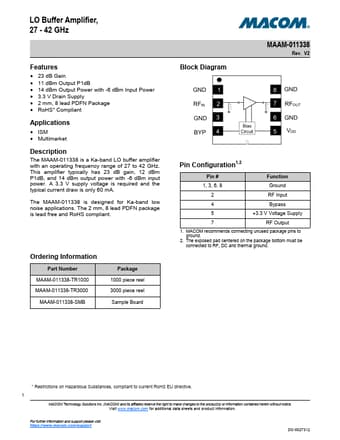

Datasheet Preview: MAAM-011338 📥 Download PDF (535.02kb)
Page 2 of MAAM-011338 Page 3 of MAAM-011338

MAAM-011338 Application

  • Applications
  • ISM
  • Multimarket Description The MAAM-011338 is a Ka-band LO buffer amplifier with an operating frequency range of 2

TAGS

MAAM-011338
Buffer
Amplifier
MA-COM
