MAVR-000120-14110P, MAVR-000120-1141 Datasheet - MACOM

MAVR-000120-14110P Solderable GaAs Constant Gamma Flip-Chip Varactor Diode

The MAVR-000120-1411 is a gallium arsenide flip chip hyperabrupt varactor diode. This device is fabricated on OMCVD epitaxial wafers using a process designed for high device uniformity and extremely low parasitics. This diode is fully passivated with silicon nitride and has an additional layer of po.

MAVR-000120-14110P Features

* Usable Past 70 GHz

* Constant Gamma for Linear Tuning

* Low Parasitic Capacitance

* High Q

* Silicon Nitride Passivation

* Polyimide Scratch Protection

* Surface Mount Configuration

* Lead Free (RoHS Compliant)

* Available in

MAVR-000120-1141-MACOM.pdf

This datasheet PDF includes multiple part numbers: MAVR-000120-14110P, MAVR-000120-1141. Please refer to the document for exact specifications by model.

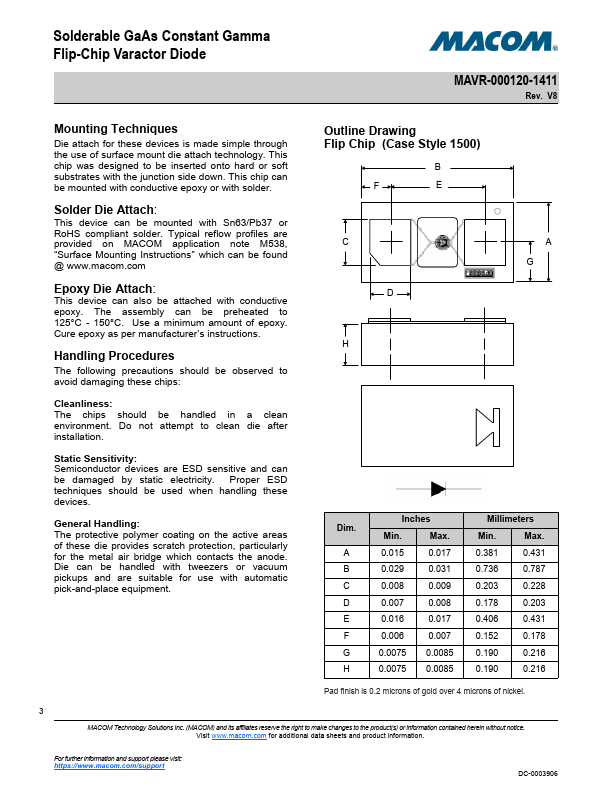

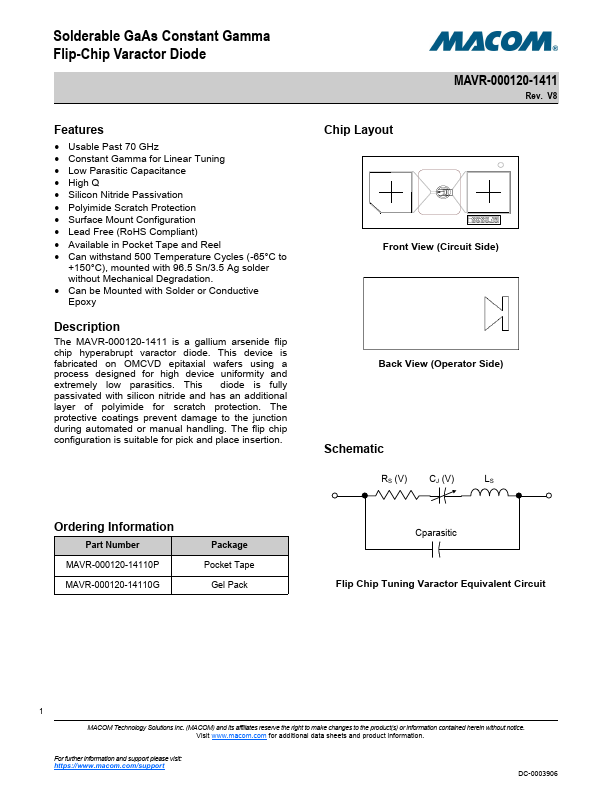

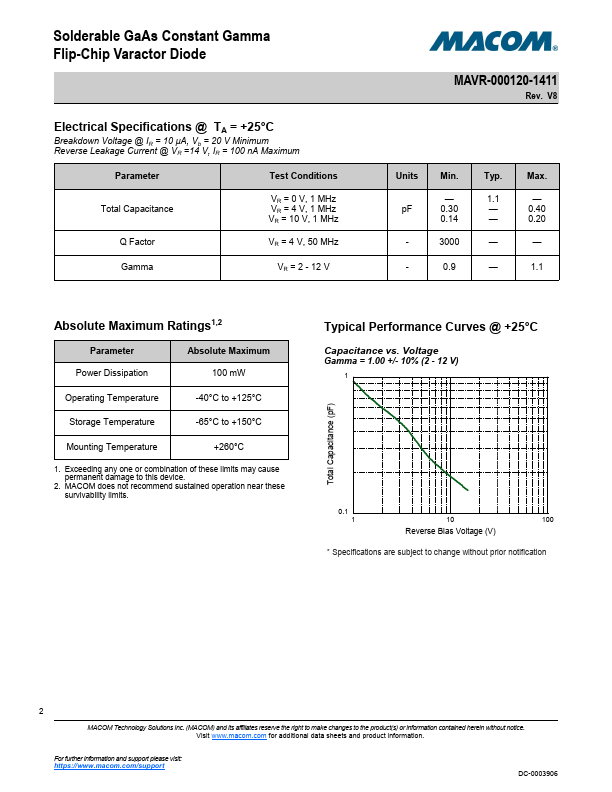

MAVR-000120-14110P Datasheet Preview Page 2 MAVR-000120-14110P Datasheet Preview Page 3

Datasheet Details

Part number:

MAVR-000120-14110P, MAVR-000120-1141

Manufacturer:

MACOM

File Size:

365.11 KB

Description:

Solderable gaas constant gamma flip-chip varactor diode.

Note:

This datasheet PDF includes multiple part numbers: MAVR-000120-14110P, MAVR-000120-1141.
Please refer to the document for exact specifications by model.
