MDS-169 Datasheet - MACOM

MDS-169 Termination Insensitive Mixer

The unique design of the termination insensitive mixer (TIM) enables it to apply high reverse voltage to diodes during their “off” phase, in the LO cycle. This allows for higher power level performance with minimum distortion. In addition the TIM has internal loads that provide a good match and also.

MDS-169 Features

* Intermodulation Ratio is Insensitive to Port Mismatches

* VSWR:

MDS-169 Datasheet (393.53 KB)

Preview of MDS-169 PDF

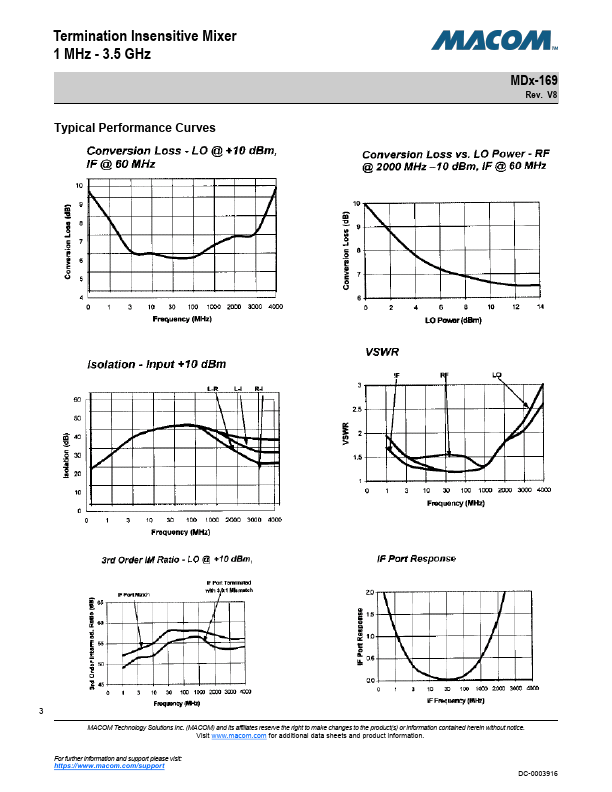

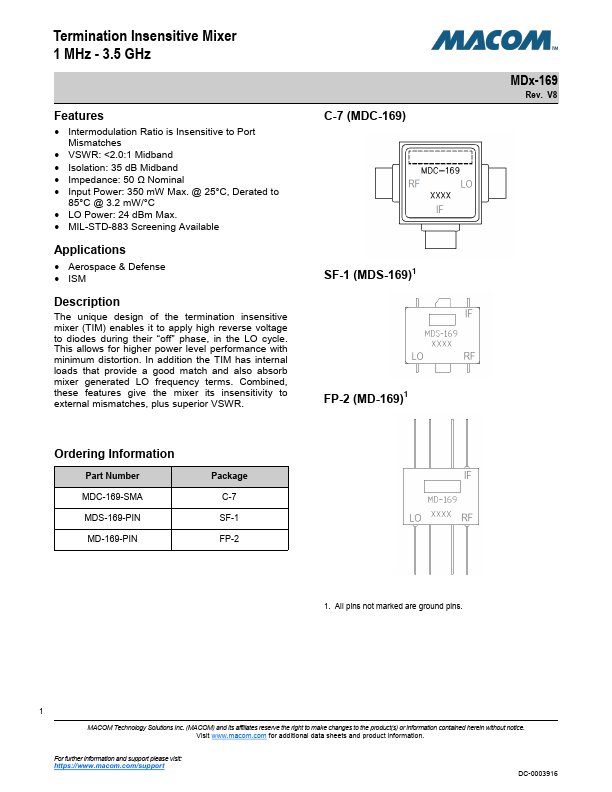

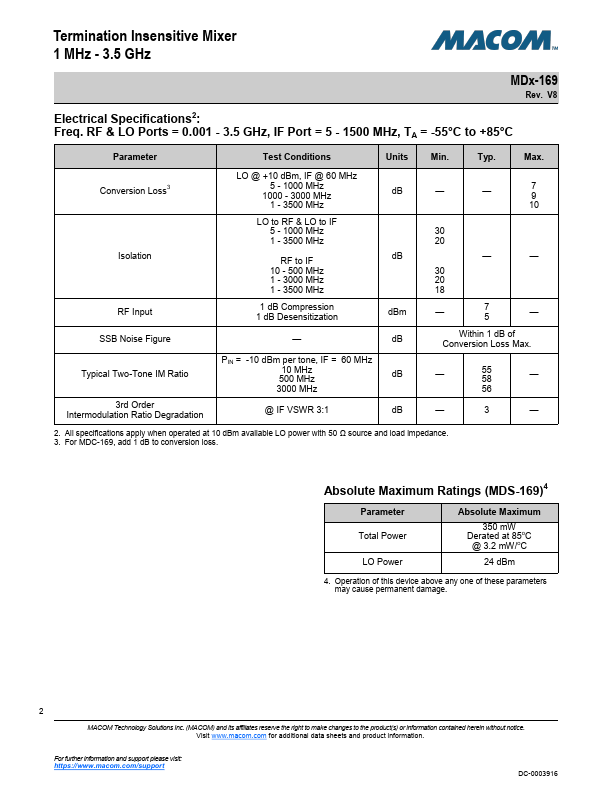

MDS-169 Datasheet Preview Page 2 MDS-169 Datasheet Preview Page 3

Datasheet Details

Part number:

MDS-169

Manufacturer:

MACOM

File Size:

393.53 KB

Description:

Termination insensitive mixer.
