XX1000-BD Features

* Excellent Broadband Mixer Driver

* Single Ended Fed Doubler with Distributed Buffer Amplifier

* Excellent LO Driver for MACOM Receivers

* +15 dBm Output Drive

* 100% On-Wafer RF, DC and Output Power Testing

* 100% Visual Inspection to MIL-STD-883 Met

XX1000-BD General Description

This single ended fed (no external balun required) 7.5 - 25.0 / 15.0 - 50.0 GHz GaAs MMIC doubler has a 15 dBm output drive and is an excellent LO doubler that can be used to drive fundamental mixer devices. It is also well suited to drive MACOMs’ XR1002 receiver device. This MMIC uses a GaAs pHEMT .

XX1000-BD Datasheet (551.29 KB)

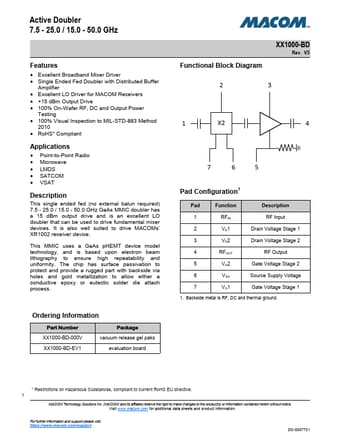

Preview of XX1000-BD PDF

Datasheet Details

Part number:

XX1000-BD

Manufacturer:

MACOM

File Size:

551.29 KB

Description:

Active doubler.
