XX1001-BD Datasheet, Amplifier, Mimix Broadband

XX1001-BD Features

  • Amplifier Integrated Doubler and Power Amplifier Excellent Saturated Output Stage +26.0 dBm Output Power 50.0 dBc Fundamental Suppression 100% On-Wafer RF, DC and Output Power Testing 100% Visual

PDF File Details

Part number:

XX1001-BD

Manufacturer:

Mimix Broadband

File Size:

219.03kb

Download:

📄 Datasheet

Description:

Gaas mmic doubler and power amplifier. Mimix Broadband's 18.0-21.0/36.0-42.0 GHz GaAs MMIC doubler integrates a doubler and 4-stage power amplifier. The device provides bet

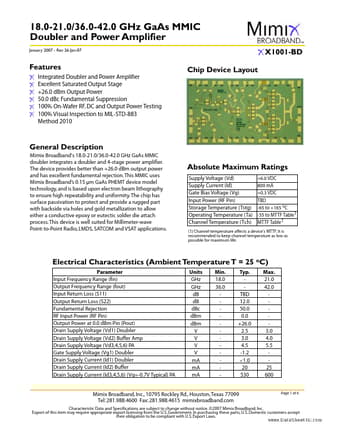

Datasheet Preview: XX1001-BD 📥 Download PDF (219.03kb)
Page 2 of XX1001-BD Page 3 of XX1001-BD

XX1001-BD Application

  • Applications Absolute Maximum Ratings Supply Voltage (Vd) Supply Current (Id) Gate Bias Voltage (Vg) Input Power (RF Pin) Storage Temperature (Tst
